Thermal Optics
BTH35 v2

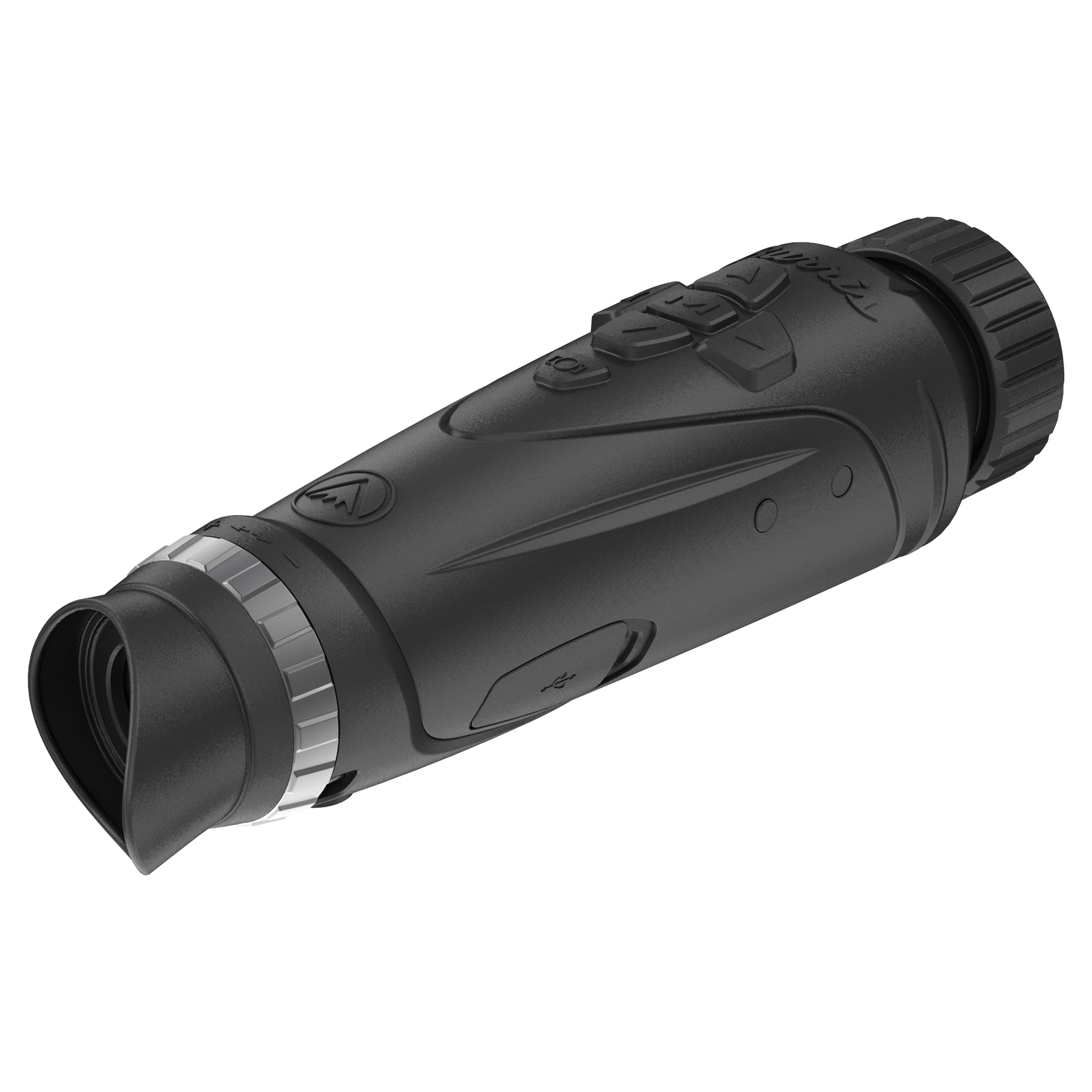

With a modern, lightweight design the Burris Thermal Handheld has the ability to hot track targets over 750 yards away. The smooth zoom and real time wifi-to-mobile connection keeps you locked on your target. Connection allows you to control and record the handheld from your mobile phone.
Specifications
| Item Number | Resolution | Pixel Size | Focal Length | Focusing | Visual Angle | Frame Rate | Digital Zoom | Eye Relief | Dioptric Compensation | Screen | Color Palettes | Adapter/Battery | Working Hours | Mounting Type | Weight | Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 300646 | 400 x 300 | 12µm | 35mm F1.0 | Manual Focus | 7.8º x 5.9º | 50Hz | 1x - 4x | 17 mm | -4 to +4 | 1280x960 color LCOS | Black hot | White hot | Red hot | Green hot | Blue hot | USB-C | ≥5 hours @25°C | 1/4-20 Threaded Adapters | 22 oz. | 249mm x 61mm x 70mm |
WHITE HOT
Objects with higher temperatures
are shown in white or light gray.
GREEN HOT
Objects with higher temperatures
are shown in lighter green.
BLACK HOT
Objects with higher temperatures
are shown in black or dark gray.
BLUE HOT
Objects with lower temperatures are shown in blue
or dark blue and higher temperatures are shown in red and yellow.
RED HOT
Objects with higher temperatures are shown in red. Users can adjust the intensity of the red in the color profile under the Thermal Settings drop-down, then Thermal Intensity.
COLOR PALETTE
Choose between five different
color palettes to best fit your hunting needs.
Picture in Picture
When the PIP window image is on a 2x magnification of the main image is in the display.
BurrisConnect
The V2 Burris Thermal Scope (BTS) pairs with the new-and-improved BurrisConnect App to create and upload custom ballistic profiles. The BurrisConnect app allows hunters to create rifle profiles and input environmental factors for their hunt. The app uses custom ballistic calculators to help hunters precisely dial their turrets for an accurate shot. With the V2 Burris Thermal Scope (BTS) and the BurrisConnect app, Burris does the math for you so you can dial to distance faster than ever.
BTH35 v2 Features
APP CONNECTIVITY
- Real-time video streaming and photo capture capability
- Remote control of numerous device settings
SENSOR RESOLUTION (CORE) 400X300 VOX SENSOR W/50HZ REFRESH RATE & 12µM PIXEL PITCH
- Next-gen IR imaging performance from new 12µm pixel pitch sensor allows high performance with smaller, lighter objective lenses
- Clear and crisp imaging with high performance 35mm F1.0 lens
Generous FOV for both models
- BTH35 v2 has an FOV of 7.8°x5.9°
- BTH19 v2 has an FOV of 14.4°x10.8° 3.
OTHER FEATURES
- Refreshed UI and menu system allow for intuitive navigation with support for 10 languages (English, Italian, Spanish, German, French, Russian, Finnish, Swedish, Danish, Polish)
- All user touchpoints (Buttons, Focus Ring, Diopter Ring, Eye Cups) have been optimized to provide a more comfortable, natural-feeling product operation especially while wearing gloves
- Waterproof protection
- All handheld units include accessory M1913 Picatinny accessory rails
User Guides
| Name BTH v2 User Manual | Type PDF | Modified September 25, 2023 | Download |
