Thermal Optics
BTC35 v2

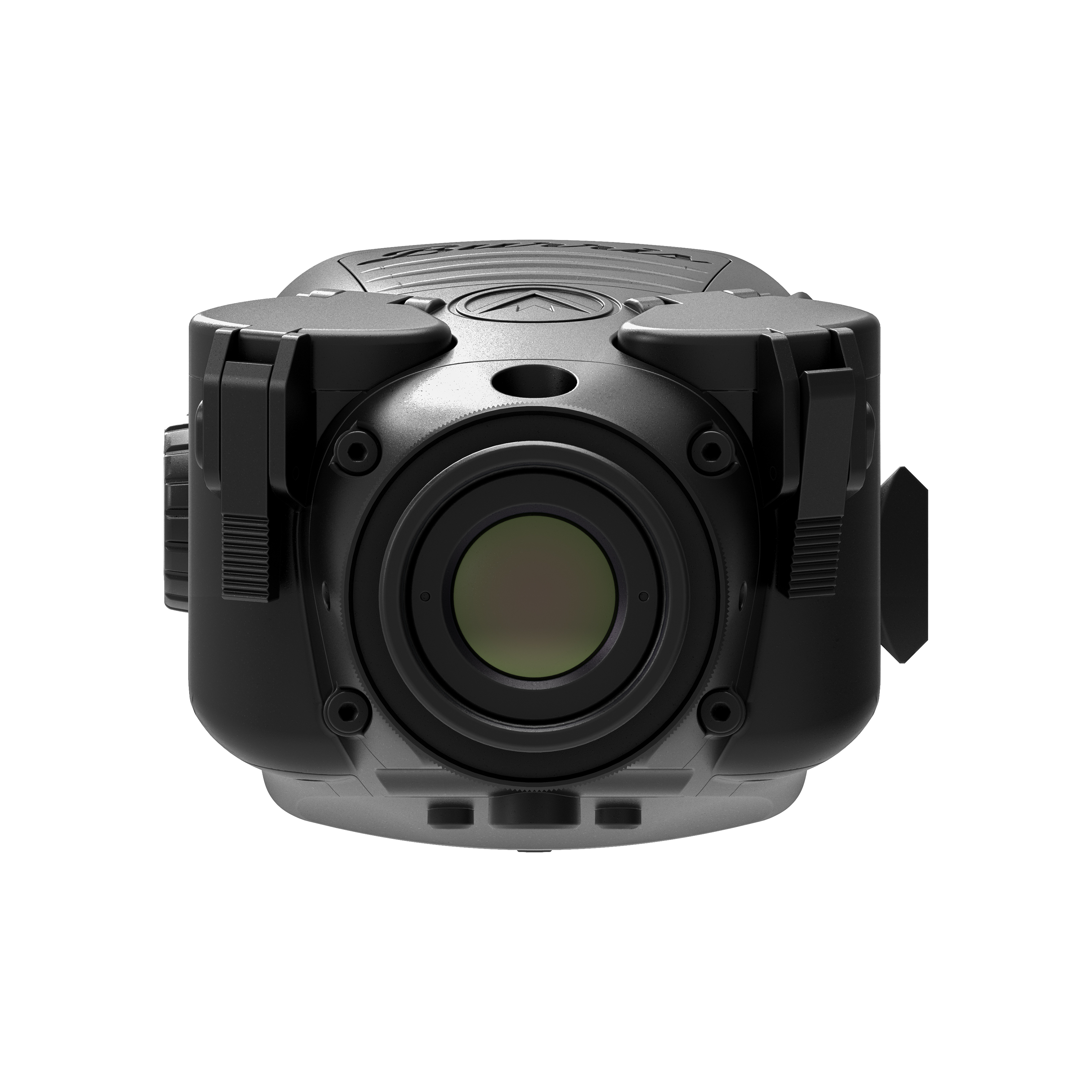

Transform your hunting experience with the versatile Burris Clip-on v2. Whether you prefer a handheld tracker or want to turn your traditional riflescope into a thermal optics, the BTC v2 offers seamless adaptability. With its 1x, 2x, and 4x power zoom capabilities and a selection of five vivid color palettes, the Burris Clip-on allows you to identify thermal signatures up to 750 yards out! Demand more out of your night hunting with the BTC v2.
Adaptor sold separately.
Specifications
| Item Number | Resolution | Pixel Size | Focal Length | Focusing | Visual Angle | Frame Rate | Digital Zoom | Eye Relief | Dioptric Compensation | Screen | Color Palettes | Magnification | Adapter/Battery | Working Hours | Mounting Type | Weight | Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 300627 | 400 x 300 | 12µm | 35mm F1.0 | Manual Focus | 7.8º x 5.9º | 50Hz | 1x, 2x, 4x | 10 mm | -4 to +4 | 1024 x 768 | Black hot | White hot | Red hot | Green hot | Blue hot | 1-4x | 2x CR123 / ICR 16340 | ≥ 2 hours @ 25 °C | M33.5 x 0.75 threaded eyepiece SmartClip, 1/4-20 interface for M1913 QD Mount | 16.2 oz. | 5.9 in. x 2.9 in. x 2.5 in. |
WHITE HOT
Objects with higher temperatures
are shown in white or light gray.
GREEN HOT
Objects with higher temperatures
are shown in lighter green.
BLACK HOT
Objects with higher temperatures
are shown in black or dark gray.
BLUE HOT
Objects with lower temperatures are shown in blue
or dark blue and higher temperatures are shown in red and yellow.
RED HOT
Objects with higher temperatures are shown in red. Users can adjust the intensity of the red in the color profile under the Thermal Settings drop-down, then Thermal Intensity.
COLOR PALETTE
Choose between five different
color palettes to best fit your hunting needs.
Picture in Picture
When the PIP window image is on a 2x magnification of the main image is in the display.
BurrisConnect
The V2 Burris Thermal Scope (BTS) pairs with the new-and-improved BurrisConnect App to create and upload custom ballistic profiles. The BurrisConnect app allows hunters to create rifle profiles and input environmental factors for their hunt. The app uses custom ballistic calculators to help hunters precisely dial their turrets for an accurate shot. With the V2 Burris Thermal Scope (BTS) and the BurrisConnect app, Burris does the math for you so you can dial to distance faster than ever.
BTC35 v2 Features
APP CONNECTIVITY
- Real-time video streaming and photo capture capability
- Remote control of numerous device settings
SENSOR RESOLUTION (CORE)
- 400X300 VOX Sensor W/50HZ Refresh Rate & 12µM Pixel Pitch
- Next-gen IR imaging performance from new 12µm pixel pitch sensor allows high performance with smaller, lighter objective lenses
- Clear and crisp imaging with high performance 35mm F1.0 lens
- Generous 7.8°x5.9° FOV
POWER AND RUN TIME
- Battery Type: 2X 16340 (RCR123) Rechargeable
- Battery Life: ≥ 2 hours @ 25 °C
- Auto Power Off (5 min, 30 min, 60 min)
PHOTO AND VIDEO
- Photo and video can be recorded from your BTC via the BurrisConnect app.
- Five-option color palette (White Hot, Black Hot, Red Hot, Green Hot, Blue Hot)
User Guides
| Name BTC35 v2 User Manual | Type PDF | Modified September 25, 2023 | Download |
| Name BTC35 v2 User Manual (Multi-Language) | Type PDF | Modified September 27, 2023 | Download |
